Package Included

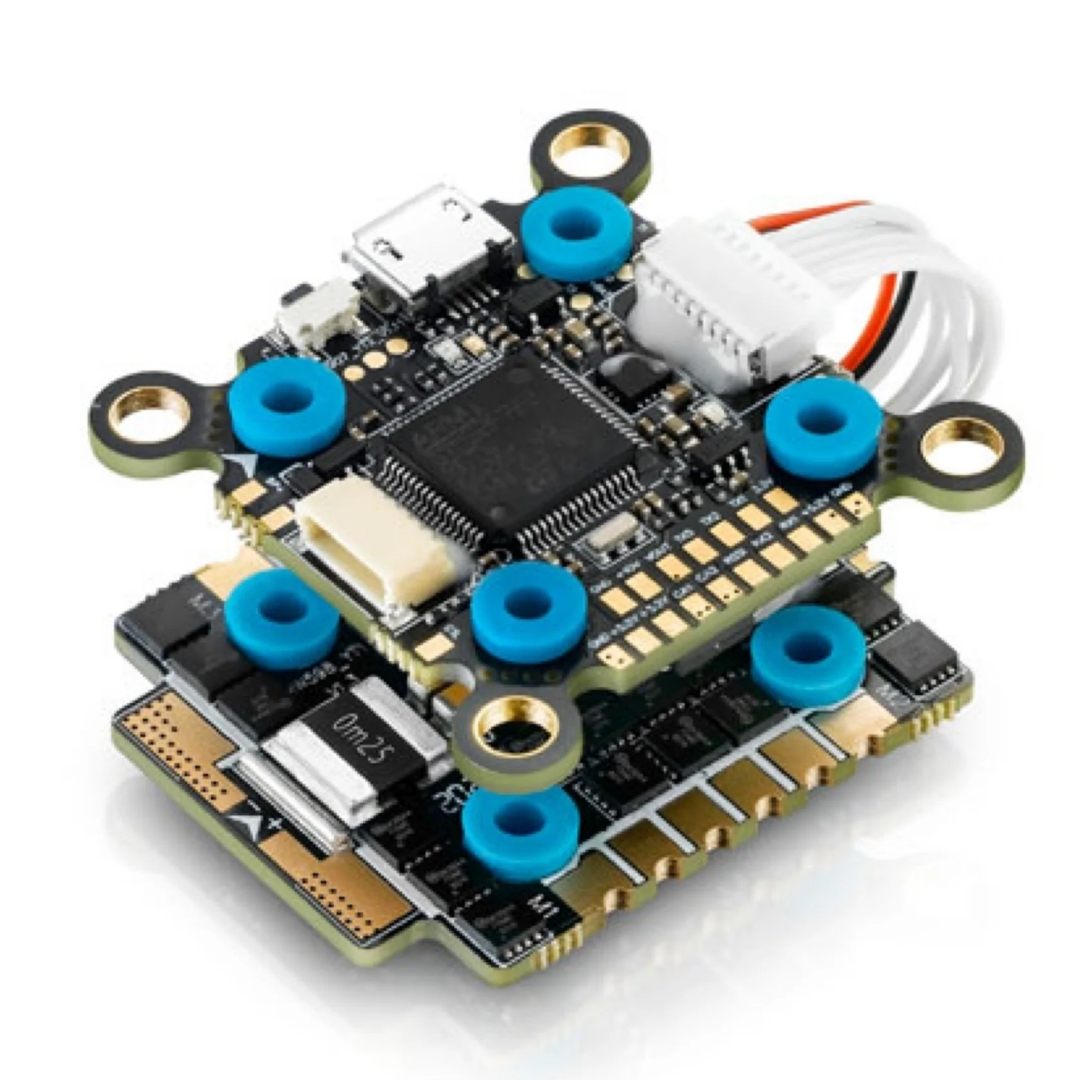

1 Piece - Hobbywing 45A ESC
1 Piece - Hobbywing F7 FC
1 Set - Cables
Features
Redesign every aspect
Super hardware and operating speed It is equipped with STM32F722 MCU and high-precision MPU6500 six-axis motion sensor, which has strong computing ability and fast operating speed. It can perfectly support bidirectional DShot digital throttle communication. Integrated OSD chip can set and adjust each OSD parameter in FC parameter setting software and radio, simple and convenient. Built-in large capacity Flash memory chip, can record and store more flight logs; This is convenient for users to debug aircraft based on flight data.
Special interface for DJI image transmission system With the DJI image transmission system port equipped with corresponding flat cable (FC equipped), it can avoid welding, realize plug and play.
Onboard 5V and 12V dual BEC circuit FMU integrates with 12V BEC circuit. It can provide super power output for image transmission and 12V LED devices.
Built-in Pit Switch module The FC integrated Pit Switch module can turn on or off the VTX via radio after the FC parameter is set in the software. Easy and convenient.
Perfectly supports the firmware of various FPVs. Supports the firmware of BetaFlight, Cleanflight, Butterflight, inva and other mainstream FPV, and can use the corresponding parameter adjustment software to adjust various parameters, making FC more suitable for various FPV flying and racing.
Unique installation design and shock absorption structure Double hole distance mounting hole design (30*30MM and 20*20MM) can adapt to different frames. Unique flexible flat cable connection mode (The effect is better with hobby wing tower 4 in 1 ESC) and shock absorption mechanism of the installation hole can effectively reduce the impact of external vibration on FC high-precision components and make the flight more stable and precise.
Perfect match with Hobbywing ESC Matched with Hobbywing tower 4 in 1 ESC
